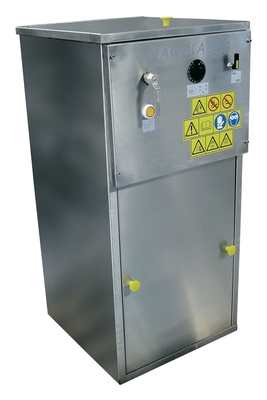

Compact machine of small size, ideal for small paint shops.
Designed to automatically clean spray guns when working with solvent-based paints and clearcoats.
Equipped with dual automatic cleaning system, with reused and clean solvents; and two working modes; manual flush air nozzle to avoid the solvent entering the air inlet or automatic.
Automatic wash with reused/clean solvent.
Pump absorption filter.
Minimum maintenance.
Robust and easy to use.
Pneumatic blowing device to avoid the penetration of solvent into the interior of the gun.
| Dimensions | 1000 x 480 x 550 mm |
| Weight | 50 Kg |
| Sustainable load | 20 Kg |
| Capacity of the washing unit | 38 L |
| Working pressure max. | 7 bar |
| Manufactured in stainless steel | YES |
| Compact, occupies minimum space | YES |
| Automatic wash with reused/ clean solvent | YES |
| Timer | YES |
| Automatic extraction of fumes | YES |
| CE Certification | YES |
| ATEX II 3GD | YES |
| Code | Version |
|---|---|
| 40000199 | Compact 220 Spray Gun Washer |
Lavadora Sagola COMPACT 220
Manual
Lavadora Sagola COMPACT 220
Exploded view
