Attention! Exclusive product for the Spanish, Portuguese, Andorran, and Mexican markets.

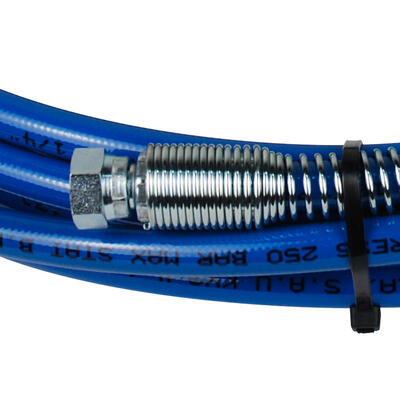

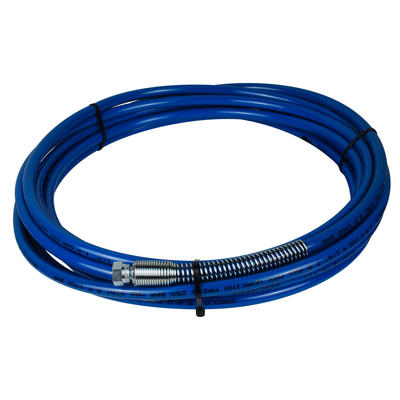

Hose for electrical equipment with Airless painting system.
Product hose with polyester reinforcement and maximum working pressure of 250 bar with 1/4 "connection terminals (rotating coupling).
Polyurethane hose (inside) and outside of polyamide with textile reinforcement of 6x12.3 mm.
Regulations
ATEX 2014/34/EU Ex II 2G cT5
DIN EN 11 27-2
DIN 8028 - 6.3
BGR 132 - 3.3.5
| Ø inner diameter | 6 mm |
| Ø outer diameter | 12.3 mm |
| Working temperature range | -40ºC to +98ºC |
| Working pressure | 250 bar |
| Burst pressure | 1,000 bar |
| Material (inside) | Polyamide + Polyester reinforcement |
| Material (outer) | Polyurethane |
| Curvature range | 55 mm |
| Colour | Blue |
| Anti-static | YES |
| Connection | 1/4" Rotary racord |
| Code | Version |
|---|
