Attention! Exclusive product for the Spanish, Portuguese, Andorran, and Mexican markets.
Professional pneumatic equipment for painting in version with mixed painting system. High production.
RAIDER professional line, designed and manufactured with the needs of small and medium metal and wood industries in mind.
Simple handling and reduced maintenance. High robustness.
We bet on technique and durability. Very low air consumption.
Valid for products such as lacquers and varnishes, basecoats, enamels, water-based paints, light primers,..., in general, medium viscosity products.
Dimensions | 41.5 x 39 x 74.5 cm. |
Weight | 15.5 kg (34.17 lbs) |
Maximum air inlet pressure | 7 bar (192 psi) |
Product outlet pressure maximum | 215 bar (3.118 psi) |
Free flow (60 cycles/min.) | 1.8 L/min (0,4 gpm) |
Flow per cycle | 30 c.c. |
Air inlet connection | 1/4” BSP F - Quick connector Us-Mil |
Product outlet connection | BSP 1/4” M |
Tip max | 0,013” |
ATEX | ATEX II 2G, IIB T3 x |
Code | Version |
---|---|

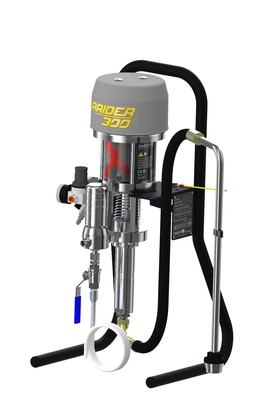

30951602 | Raider 300 Sagola Trolley+suction Probe |

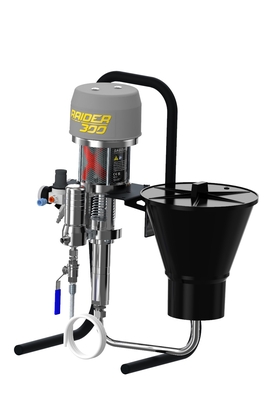

30951603 | Raider 300 Sagola Trolley+tank |
30951604 | Raider 300 Sagola Support+tank |
30951605 | Raider 300 Wall Support+suction Probe |
30951698 | Raider 300 Mix Sagola Complete Equipment |
30951699 | Raider 300 Sagola Complete Equipment |
