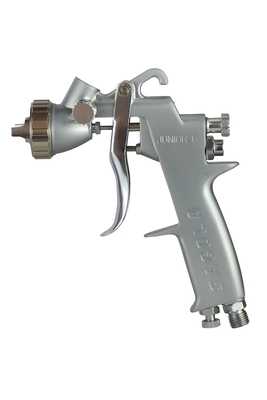

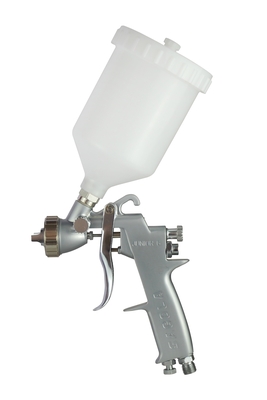

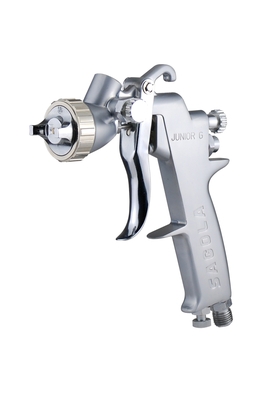

The SAGOLA Junior G spraygun is a very economical gravity spray gun in contrast to its features.
Spraygun with a robust body. Lightweight and ergonomic exclusive design by Sagola.
Spray gun suitable for working with 1.5 HP power compressors. Very low air consumption.
Incorporates air, product and fan flow regulators. 600 ml. cup capacity. Quick connector included.
Two packaging formats, in box or blister.
| Weight with cup | 493 g. |
| Weight without cup | 371 g. |
| Dimensions with cup | 17 x 10 x 32 cm. |
| Dimensions without cup | 14.5 x 5.4 x 17 cm. |
| Product inlet connection | BSP 1/4" M |
| Air consumption | 115 - 125 L/min. |
| Maximum recommended inlet pressure (working pressure) | 2 bar |
| Fan size | 230 - 265 mm. |
| Cup capacity | 600 ml. |
| Code | Version |
|---|---|
| 20141902 | Junior G Gravity Spray Gun (1.8) Box |
| 20141903 | Junior G Gravity Spray Gun (1.6) Box |
| 20141904 | Junior G Gravity Spray Gun (1.4) Box |
| 20141905 | Junior G Gravity Spray Gun (1.8) Blister |
