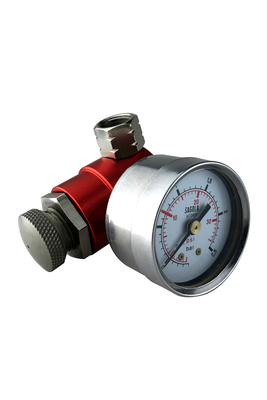

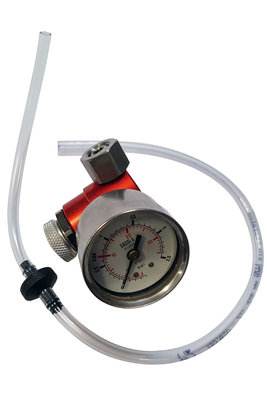

The SAGOLA gravity cup pressure kit is a high precision micro regulator for spraying up to 0.2 bar high viscosity materials such as textured paints, gel-coat (polyester) and similar substances. Non-return valve included.
A special feature The SAGOLA gravity cup pressure kit is the option to use the spraygun as non-pressurised version as well by making use of the separate, plugged inlet fitted with an anti-drip plug.
The SAGOLA gravity cup pressure kit is adapted to the SAGOLA gravity sprayguns (3300 GTO, CLASSIC PRO XD) that fluid nozzle size Ø 2.0, 2.2, 2.5 and 2.8.
Net weight | 42 g |
Cup capacity | 0.65 L |
Pressure inside the cup | 0.05 - 0.2 bar |
Recommended working pressure | 1.8 bar |
Air inlet connection | 1/4" |
Code | Version |
---|---|
40000335 | RC2 Air Flow Regulator |
56418012 | Air Flow Regulator Sagola 1/4" M-H |
56418020 | RC1 Air Flow Regulator With Manometer |
56418513 | Gravity Assembly Pressuriser |
