X 4100 Series Pressure

Attention! Exclusive product for the Spanish, Portuguese, Andorran, and Mexican markets.

Sagola presents its new X 4100 Series, especially for the industrial painting sector. We maintain all the quality standards of its predecessor the 4100 and incorporate new aspects. All this makes it the perfect tool for work with very high demands in terms of quality of finish, robustness and ergonomics for continuous work.

Reduction of its dimensions to the maximum, thus improving the manageability and consequently the accessibility to the painting of parts with complex surfaces. Adaptability perfect at hand, reducing the feeling of fatigue on continued work due to weight reduction and improvement in their support points. It incorporates the air valve SOFT FLOW, higher precision and smothness, even with high air pressure. Application possibility for all kind of paints and sprayable products: dyes, metals, glazes, varnishes, basecoats, primers, glues, adhesives, abrasive products, ceramics, forge effect (special T.C.), textured, etc.

Category: Aerographic spray guns Tags: x4100 series , X4100 , pressure , pressure spray gun , X 4100 , 4100 , X 4100 Series

"Soft flow" air valve

Smooth trigger action even at high pressure levels.

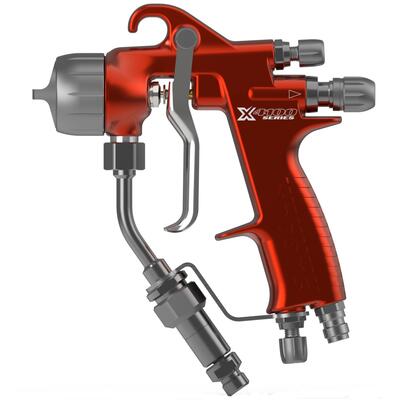

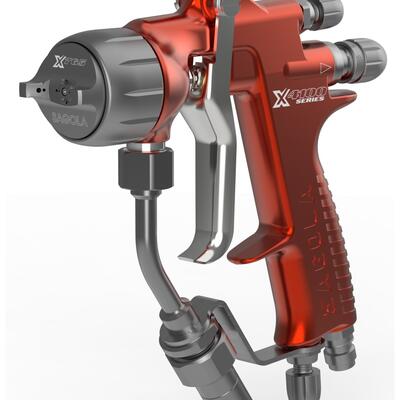

Product tube

(Optional) Facilitates painting by aligning the hoses.

"Ultra Soft Flow" air valve

SAGOLA's exclusive patented air valve. Reduces fatigue caused by trigger pulling by up to 65%.

Air caps

Made of highly resistant and lightweight duralumin (corrosion-free).

Air Cap XT01 B
	1.00	Special metalized and basecoats
	1.20	Clearcoats and primers
	1.40	Primers and fillers

Air Cap Super VIT
	1.00	Special metalized and basecoats
	1.20	Clearcoats and primers
	1.40	Primers and fillers

Air Cap XT03
	1.00	High quality finishes. Basecoats, dyes
	1.20	General finishes. Primers

Air Cap 3030
	1.20	Minimum mist. Industrial finishes
	1.40	Minimum mist. Primers, basecoats

Air Cap 777
	1.00	Maximum speed
	1.20	Finishes, high gloss

Air Cap 765
	1.00	High quality finishes
	1.20	General finishes. Primers
	1.40	Primers, basecoats

Air Cap 20 A
	1.80	Glues, adhesives

Weight	524g
Dimensions	18,2 x 17,2 x 4,2 cm
Air inlet couplings	BSP 1/4” macho
Paint inlet coupling	BSP 3/8” macho
Maximum design pressure	8 bar
Recommended maximum inlet pressure (working pressure)	2,5 - 3,0 bar
Application distance EPA	18-20 cm
Maximum recommended application distance HVLP	15-20 cm
Air consumption Aircap 765	315 L/min
Air consumption Aircap 777	345 L/min
Air consumption Aircap 20A	Air consumption Aircap 777
Air consumption Aircap XT01 B	295 L/min
Air consumption Aircap XT03	465 L/min
Air consumption Aircap 3030	514 L/min
Materials in contact with the product	INOX, Aluminio Cromado, POM, Teflón, Nylon
ATEX Ex 2 II GX	Yes

Code	Version
10152499	Spray Gun X4100 Series Pressure Special
10152417	Spray Gun X4100 Series Pressure 1.80[20a
10152416	Spraygun X4100 Serie Pressure1.40[SUPVIT
10152415	Spraygun X4100 Serie Pressure1.30[SUPVIT
10152414	Spraygun X4100 Serie Pressure1.20[SUPVIT
10152413	Spraygun X4100 Serie Pressure1.00[SUPVIT
10152412	Spraygun X4100 Series Pressure 1.40[3030
10152411	Spraygun X4100 Series Pressure 1.20[3030
10152410	Spray Gun X4100 Pressure 1.40[XT01B]EPA
10152409	Spray Gun X4100 Pressure 1.20[XT01B]EPA
10152408	Spray Gun X4100 Pressure 1.00[XT01B]EPA
10152407	Spray Gun X4100 Pressure 1.20[XT03]HVLP
10152406	Spray Gun X4100 Pressure 1.00[XT03]HVLP
10152405	Spray Gun X4100 Series Pressure 1.20[777
10152404	Spray Gun X4100 Series Pressure 1.00[777
10152403	Spray Gun X4100 Series Pressure 1.40[765
10152402	Spray Gun X4100 Series Pressure 1.20[765
10152401	Spray Gun X4100 Series Pressure 1.00[765
