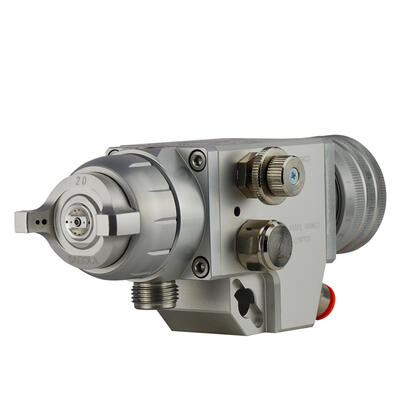

High production conventional spray gun. Incorporates double fan regulator and product regulator.
In the standard version, the nozzle and the needle are made of stainless steel.
Applications
- For tasks requiring a high opening and closure rate. Ideal to be used with robots and special machinery.
- Versions for highly corrosive or abrasive products (with tungsten carbide needle and nozzle).
- Special for high speed and top quality finishes.
Paint flow regulator
With integrated adjustable micrometer for a precise and homogeneous paint regulation of all the guns in the line.
Detachable paint-head
Independent from the pneumatic zone, with four leak detection holes between them, covering all possible angles. 100% stainless steel option.
Fan control regulator
This regulator controls the quantity and distribution of air between the lugs and central holes, allowing a perfect distribution of the spray pattern independently of the viscosity of the product.
INOX
Automatic paint packing gland without gaskets that require handling.
Nozzle and Needle. Made of stainless steel. Optional Carbide.
Fan regulator
This regulator allows us to adjust the size of the fan (of the atomisation air).
Mooring and guidance systems
This system allows removal and replacement of the spray gun from its workstation, keeping always with the same orientation. Waste time spent adjusting spray guns at their workstations is eliminated completely.
| Air Cap 765 | |||
|---|---|---|---|
|
0.80 | Fluid Products | |
| 1.00 | Wood dyes, textile, tanning | ||
| 1.40 | Primers and basecoats | ||
| Air Cap 777 | |||
|---|---|---|---|
|
1.00 | Enamels, wood varnishes, metal | |
| Air Cap 797 | |||
|---|---|---|---|
|
1.00 | Finishes, lacquers. Plastic and wood industry | |
| 1.20 | Primers and fonds. Pore filler | ||
| Air Cap 20A | |||
|---|---|---|---|
|
1.20 | Glues and adhesives | |
| 1.40 | Glues and adhesives | ||
| Air Cap 62 | |||
|---|---|---|---|
|
2.80 | Enamels. Viscous products | |
| Dimensions | 164 x 45 x 104 mm |
| Weight | 785 g |
| Air consumption | 350-400 L/min |
| Spray air inlet | Ø 8 mm |
| Pilot inlet connector (V4) | Ø 6 mm |
| Fan size | 330 mm |
| Working pressure | 2 - 5 bar |
| Regulation ATEX (V4) | ATEX Ex 2 II GX |
| Code | Version |
|---|---|
| 10250818 | Automatic Spray Gun V4 1.20/777 (10) |
| 10250801 | Automatic Spray Gun V4 0.80/765 |
| 10250802 | Automatic Spray Gun V4 1.00/765 |
| 10250803 | Automatic Spray Gun V4 1.00/777 |
| 10250805 | Automatic Spray Gun V4 1.20[ 20] |
| 10250806 | Automatic Spray Gun V4 1.20[765] |
| 10250808 | Automatic Spray Gun V4 1.20[797] |
| 10250809 | Automatic Spray Gun V4 1.40/ 20 |
| 10250810 | Automatic Spray Gun V4 1.40/765 |
| 10250811 | Automatic Spray Gun V4 1.80/ 20 |
| 10250812 | Automatic Spray Gun V4 0.80/765 (10) |
| 10250813 | Automatic Spray Gun V4 1.00/765 (10) |
| 10250814 | Automatic Spray Gun V4 1.00/777 (10) |
| 10250815 | Automatic Spray Gun V4 1.00/797 (10) |
| 10250816 | Automatic Spray Gun V4 1.20/ 20 (10) |
| 10250819 | Automatic Spray Gun V4 1.20/797 (10) |
| 10250820 | Automatic Spray Gun V4 1.40[ 20] (10) |
| 10250821 | Automatic Spray Gun V4 1.40/765 (10) |
| 10250824 | Automatic Spray Gun V4 2.80/ 62 (10) |
| 10250825 | Automatic Spray Gun V4 1200/765 (11) |
| 10250827 | Automatic Spray Gun V4 1.40/765 (11) |
| 10250828 | Automatic Spray Gun V4 1.80/ 67 (11) |
| 10250829 | Automatic Spray Gun V4 2.20/ 64 (11) |
| 10250830 | Automatic Spray Gun V4 2.80/ 62 (11) |
| 10250831 | Automatic Spray Gun V4 0.80/765 (12) |
| 10250832 | Automatic Spray Gun V4 1.00/765 (12) |
| 10250834 | Automatic Spray Gun V4 1.00/797 (12) |
| 10250835 | Automatic Spray Gun V4 1.20/ 20 (12) |
| 10250838 | Automatic Spray Gun V4 1.20/797 (12) |
| 10250839 | Automatic Spray Gun V4 1.40/ 20 (12) |
| 10250840 | Automatic Spray Gun V4 1.40/765 (12) |
| 10250842 | Automatic Spray Gun V4 0.80/765 (13) |
| 10250844 | Automatic Spray Gun V4 1.00/777 (13) |
| 10250845 | Automatic Spray Gun V4 1.00/797 (13) |
| 10250846 | Automatic Spray Gun V4 1.20/ 20 (13) |
| 10250848 | Automatic Spray Gun V4 1.20/777 (13) |
| 10250849 | Automatic Spray Gun V4 1.20/797 (13) |
| 10250850 | Automatic Spray Gun V4 1.40/ 20 (13) |
| 10250851 | Automatic Spray Gun V4 1.40/765 (13) |
| 10250852 | Automatic Spray Gun V4 1.80/ 20 (13) |
| 10250853 | Automatic Spray Gun V4 2.20/ 64 (13) |
| 10250854 | Automatic Spray Gun V4 2.80/ 62 (13) |
| 10250855 | Automatic Spray Gun V4 1.20/765 (14) |
| 10250856 | Automatic Spray Gun V4 1.40/ 78 (14) |
| 10250857 | Automatic Spray Gun V4 1.40/765 (14) |
| 10250858 | Automatic Spray Gun V4 1.80/ 67 (14) |
| 10250859 | Automatic Spray Gun V4 2.20/ 64 (14) |
| 10250860 | Automatic Spray Gun V4 2.80/ 62 (14) |
