V4000
V4000
V4000

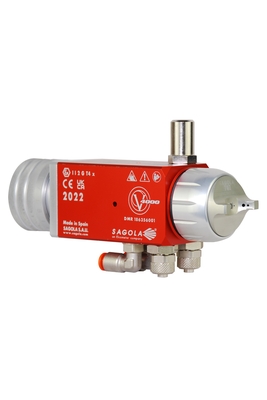

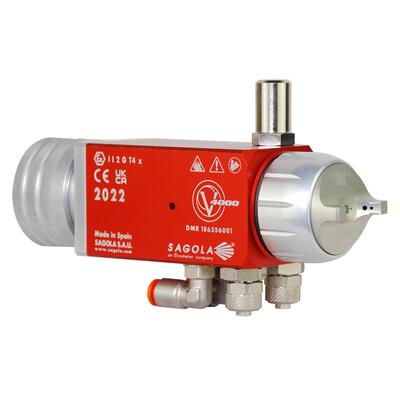

Sagola launches its new line of automatic spray guns, the V 4000. All the quality standards of its predecessor the 4041 are kept, but adding new features. The perfect tool for high demand automatic lines projects in terms of finish quality, robustness and durability.

  • Size reduction: A size reduction that improves the manageability and consequently, the access to complex shapes parts.

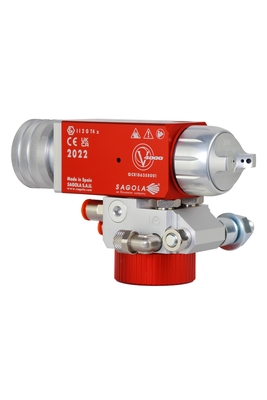

  • Robot version (DMR/QCR): Automated fan size regulation. An air inlet replaces the manual regulator wheel.
  • Abrasives versions: Tungsten Carbide nozzles and needles to spray abrasive fluids. Great hardness and resistance to abrasion.

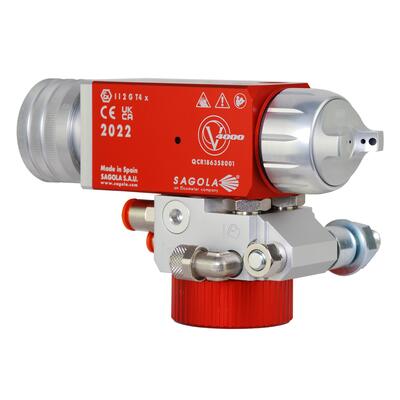

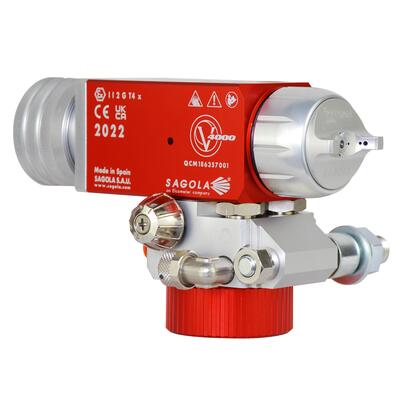

Base (QCM/QCR) Version

Same features as the standard version (DMM/DMR) but including a base that simplifies maintenance and cleaning work. Quick disassembly system that allows the repositioning of the gun in the same position keeping the setup parameters.

  • Large ergonomic knob to ensure a quick and easy fixing of the gun to the base.
  • Hold system with positioning fit.
  • Fan regulator located in the base for a quick replacement of the gun keeping the setup parameters.
  • Manufactured in accordance with the normative EN 1953:2013 Ap. 5.2.4.

Available in both standard and base versions. Automated fan pattern regulation. The manual regulation wheel is replaced by an air inlet.

All inlets, both hydraulic and pneumatic, have been located on the same side of the gun or the base to facilitate the setup of the painting line.

Connections

All inlets, both hydraulic and pneumatic, have been located on the same side of the gun or the base to facilitate the setup of the painting line.

Category: Tags: , , , ,
Air Cap X765
X765 1.40 Finishes enamels wood varnishes metal
1.20 Basecoat finishes metallic, pearl plastic and automotive industry
1.00 Fluid products wood dyes textile, tanned teflón
0.80 Fluid products wood dyes textile, tanned teflón
Air Cap X777
X777 1.00 Basecoat finishes metallic, pearl plastic and automotive industry
Air Cap 797
797 1.00 Hs clearcoat single stage hs lacquers plastic, wood and automotive industry
1.20 Hs clearcoat single stage hs lacquers plastic, wood and automotive industry

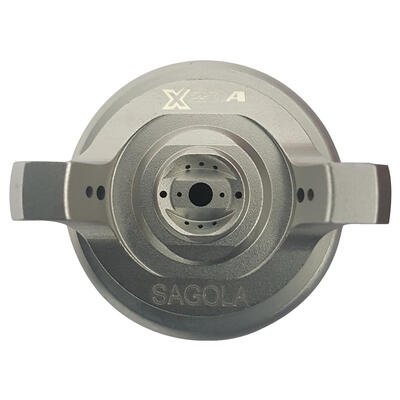

Air Cap X20A
X20A 1.20 Coles adhesives
1.40 Coles adhesives
1.80 Coles adhesives

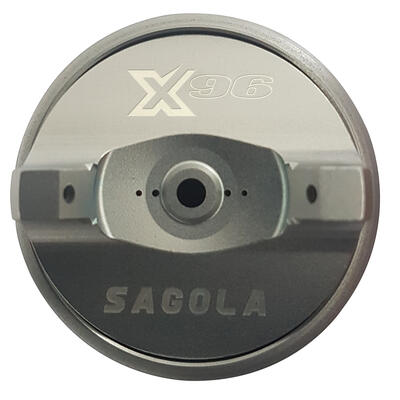

Air Cap X96
X96 1.40 Industrial finishes medium pressure gravity painted system
1.80 Industrial finishes medium pressure gravity painted system

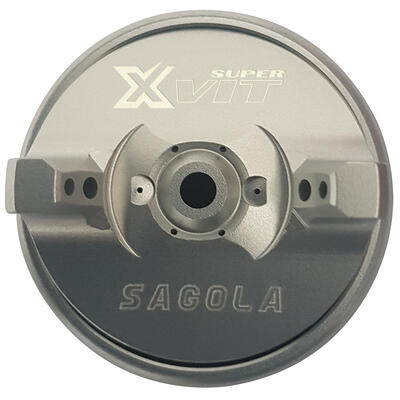

Air Cap X Super VIT
X Super VIT 1.00 Fluid products wood dyes textile, tanned teflón
1.20 Finishes enamels wood varnishes metal
1.40 Primers background pore cover wood and metal industry

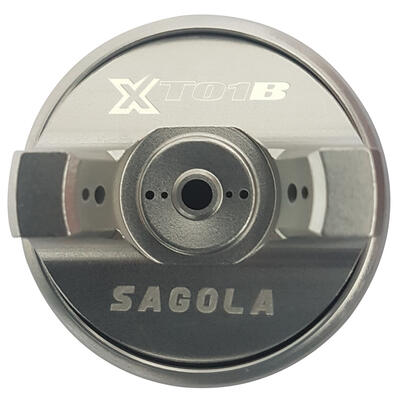

Air Cap XT01B
XT01B 0.80 Fluid products wood dyes textile, tanned teflón
1.00 Basecoat finishes metallic, pearl plastic and automotive industry
1.20 Primers background pore cover wood and metal industry
1.40 Coles adhesives
1.40 C.T. Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic

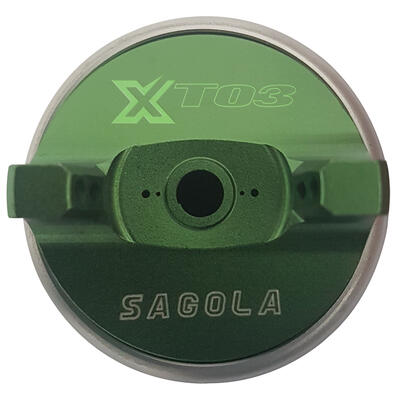

Air Cap XT03
XT03 1.00 Basecoat finishes metallic, pearl plastic and automotive industry
1.20 HS clearcoat single stage hs lacquers plastic, wood and automotive industry
1.40 Primers background pore cover wood and metal industry
1.40 C.T. Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic

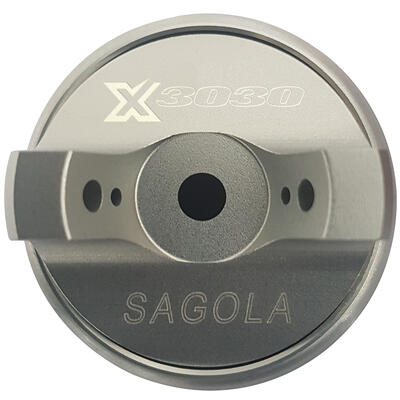

Air Cap X3030
X3030 1.20 Primers background pore cover wood and metal industry
1.40 Coles adhesives
Air Cap 500
500 0.80 Fluid products wood dyes textile, tanned teflon
1.00 Basecoat finishes metallic, pearl plastic and automotive industry
1.20 Coles adhesives
1.20 C.T. Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic
Air Cap 600
600 0.80 Fluid products wood dyes textile, tanned teflon
1.00 Basecoat finishes metallic, pearl plastic and automotive industry
1.20 Finishes enamels wood varnishes metal
1.40 Coles adhesives
1.20 C.T. Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic
1.40 C.T. Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic

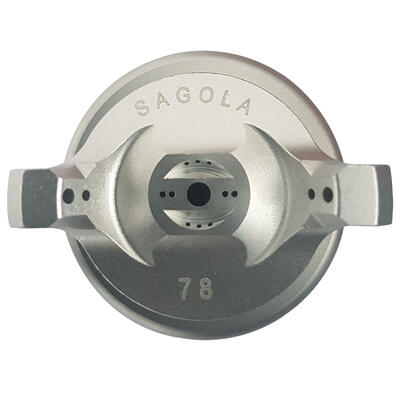

Air Cap 78
78 1.40 C.T. Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic

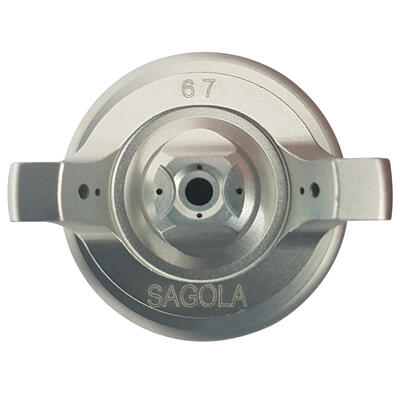

Air Cap 67
67 1.80 C.T. Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic
Air Cap 64
64 2.20 C.T. Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic

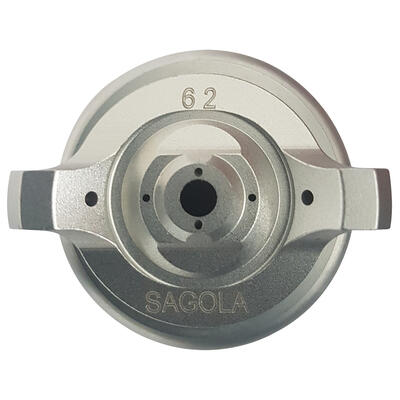

Air Cap 62
62 2.80 C.T. Abrasive products ceramic enamels vitrifiable enamels ceramics vitrochramic
Weight DMM version 915 g (2.01 lbs)
Weight DMR version 987 g (2.17 lbs)
Weight QCM version 1,240 g (2.73 lbs)
Weight QCR version 1,318 g (2.90 lbs)
Dimensions DMM version 164 x 45 x 104 mm 6.4 x 1.7 x 4.1"
Dimensions DMR version 164 x 45 x 104 mm 6.4 x 1.7 x 4.1"
Dimensions QCM version 164 x 45 x 174 mm 6.4 x 1.7 x 6.8"
Dimensions QCR version 164 x 45 x 174 mm 6.4 x 1.7 x 6.8"
Inlet connection (Operation) 4 mm (0.157")
Air inlet couplings 4 mm (0.157")
Paint inlet coupling thread BSP 1/4" M
Maximum air inlet pressure 8 bar (116 psi)
Recommended maximum air pressure 2 - 3 bar (29 - 36.2 psi)
Materials (contact with the product) Stainless steel, POM, Teflon, Nylon and Tungsten Carbide.
Recommended application distance EPA 18 - 20 cm 7 - 7.8"
Recommended application distance HVLP 15 - 20 cm 5.9 - 7.8"
Recommended application distance Medium pressure 20 - 25 cm (7.8 - 9.8")
Code Version
10250930 Automatic Spraygun V4000 Dmm 1.60 [765]
10250931 Automatic Spraygun V4000 Dmm 1.60 [600]
10250932 Automatic Spraygun V4000 Dmm 1.60[XT01B]
10250933 Automatic Spraygun V4000 Dmm 1.60 [XT03]
10250934 Automatic Spraygun V4000 Dmm 1.60 [20]
10250945 Automatic Spraygun V4000 Dmm 1.60 [3030]
10250946 Automatic Spraygun V4000 Dmm 1.60 [96]
10250979 Automatic Spraygun V4000 Qcm 1.60 [765]
10250980 Automatic Spraygun V4000 Qcm 1.60 [600]
10250981 Automatic Spraygun V4000 Qcm 1.60[XT01B]
10250982 Automatic Spraygun V4000 Qcm 1.60 [XT03]
10250983 Automatic Spraygun V4000 Qcm 1.60 [20]
10250984 Automatic Spraygun V4000 Qcm 1.60 [3030]
10250995 Automatic Spraygun V4000 Qcm 1.60 [96]
10251017 Automatic Spraygun V4000 Dmr 1.60 [765]
10251018 Automatic Spraygun V4000 Dmr 1.60[XT01B]
10251019 Automatic Spraygun V4000 Dmr 1.60 [20]
10251035 Automatic Spraygun V4000 Dmr 1.60 [600]
10251036 Automatic Spraygun V4000 Dmr 1.60 [3030]
10251066 Automatic Spraygun V4000 Qcr 1.60 [765]
10251067 Automatic Spraygun V4000 Qcr 1.60[XT01B]
10251068 Automatic Spraygun V4000 Qcr 1.60 [20]
10251069 Automatic Spraygun V4000 Qcr 1.60 [600]
10251085 Automatic Spraygun V4000 Qcr 1.60 [3030]
10250903 Automatic Spraygun V4000 Dmm 1.20 [765]
10250904 Automatic Spraygun V4000 Dmm 1.40 [765]
10250905 Automatic Spraygun V4000 Dmm 0.80 [500]
10250906 Automatic Spraygun V4000 Dmm 1.00 [500]
10250907 Automatic Spraygun V4000 Dmm 1.20 [500]
10250908 Automatic Spraygun V4000 Dmm 0.80 [600]
10250909 Automatic Spraygun V4000 Dmm 1.00 [600]
10250910 Automatic Spraygun V4000 Dmm 1.20 [600]
10250911 Automatic Spraygun V4000 Dmm 1.40 [600]
10250912 Automatic Spraygun V4000 Dmm 0.80[XT01B]
10250913 Automatic Spraygun V4000 Dmm 1.00[XT01B]
10250914 Automatic Spraygun V4000 Dmm 1.20[XT01B]
10250915 Automatic Spraygun V4000 Dmm 1.40[XT01B]
10250916 Automatic Spraygun V4000 Dmm 1.00 [777]
10250917 Automatic Spraygun V4000 Dmm 1.00 [XT03]
10250918 Automatic Spraygun V4000 Dmm 1.20 [XT03]
10250919 Auto. Spraygun V4000 Dmm 1.00 [supervit]
10250920 Auto. Spraygun V4000 Dmm 1.20 [supervit]
10250921 Auto. Spraygun V4000 Dmm 1.40 [supervit]
10250922 Automatic Spraygun V4000 Dmm 1.20 [20]
10250923 Automatic Spraygun V4000 Dmm 1.40 [20]
10250924 Automatic Spraygun V4000 Dmm 1.80 [20]
10250925 Automatic Spraygun V4000 Dmm 1.20 [797]
10250926 Automatic Spraygun V4000 Dmm 1.20 [3030]
10250927 Automatic Spraygun V4000 Dmm 1.40 [3030]
10250928 Automatic Spraygun V4000 Dmm 1.40 [96]
10250929 Automatic Spraygun V4000 Dmm 1.80 [96]
10250935 Auto.spraygun V4000 Dmm 1.20 [765] (11
10250936 Auto.spraygun V4000 Dmm 1.40 [765] (11)
10250937 Auto.spraygun V4000 Dmm 1.20 [500] (11)
10250938 Auto.spraygun V4000 Dmm 1.40 [600] (11)
10250939 Auto.spraygun V4000 Dmm 1.40 [XT03] (11)
10250940 Auto.spraygun V4000 Dmm 1.80 [67] (11)
10250941 Auto.spraygun V4000 Dmm 2.20 [64] (11)
10250942 Auto.spraygun V4000 Dmm 2.80 [62] (11)
10250950 Automatic Spraygun V4000 Qcm 0.80 [765]
10250951 Automatic Spraygun V4000 Qcm 1.00 [765]
10250952 Automatic Spraygun V4000 Qcm 1.20 [765]
10250953 Automatic Spraygun V4000 Qcm 1.40 [765]
10250954 Automatic Spraygun V4000 Qcm 0.80 [500]
10250955 Automatic Spraygun V4000 Qcm 1.00 [500]
10250956 Automatic Spraygun V4000 Qcm 1.20 [500]
10250957 Automatic Spraygun V4000 Qcm 0.80 [600]
10250958 Automatic Spraygun V4000 Qcm 1.00 [600]
10250959 Automatic Spraygun V4000 Qcm 1.20 [600]
10250960 Automatic Spraygun V4000 Qcm 1.40 [600]
10250961 Automatic Spraygun V4000 Qcm 0.80 [XT01B
10250962 Automatic Spraygun V4000 Qcm 1.00[XT01B]
10250963 Automatic Spraygun V4000 Qcm 1.20[XT01B]
10250964 Automatic Spraygun V4000 Qcm 1.40[XT01B]
10250965 Automatic Spraygun V4000 Qcm 1.00 [777]
10250966 Automatic Spraygun V4000 Qcm 1.00 [XT03]
10250967 Automatic Spraygun V4000 Qcm 1.20 [XT03]
10250968 Auto. Spraygun V4000 Qcm 1.00 [supervit]
10250969 Auto. Spraygun V4000 Qcm 1.20 [supervit]
10250970 Auto. Spraygun V4000 Qcm 1.40 [supervit]
10250971 Automatic Spraygun V4000 Qcm 1.20 [20]
10250972 Automatic Spraygun V4000 Qcm 1.40 [20]
10250973 Automatic Spraygun V4000 Qcm 1.80 [20]
10250974 Automatic Spraygun V4000 Qcm 1.20 [797]
10250975 Automatic Spraygun V4000 Qcm 1.20 [3030]
10250976 Automatic Spraygun V4000 Qcm 1.40 [3030]
10250977 Automatic Spraygun V4000 Qcm 1.40 [96]
10250978 Automatic Spraygun V4000 Qcm 1.80 [96]
10250985 Auto. Spraygun V4000 Qcm 1.20 [765] (11)
10250986 Auto. Spraygun V4000 Qcm 1.40 [765] (11)
10250987 Auto. Spraygun V4000 Qcm 1.20 [500] (11)
10250988 Auto. Spraygun V4000 Qcm 1.40 [600] (11)
10250989 Auto. Spraygun V4000 Qcm 1.40 [XT03](11)
10250990 Auto. Sraygun V4000 Qcm 1.80 [67] (11)
10250991 Auto. Spraygun V4000 Qcm 2.20 [64] (11)
10250992 Auto. Spraygun V4000 Qcm 2.80 [62] (11)
10251001 Automatic Spraygun V4000 Dmr 0.80 [765]
10251002 Automatic Spraygun V4000 Dmr 1.00 [765]
10251003 Automatic Spraygun V4000 Dmr 1.40 [765]
10251004 Automatic Spraygun V4000 Dmr 0.80 [500]
10251005 Automatic Spraygun V4000 Dmr 1.00 [500]
10251006 Automatic Spraygun V4000 Dmr 1.20 [500]
10251007 Automatic Spraygun V4000 Dmr 0.80[XT01B]
10251008 Automatic Spraygun V4000 Dmr 1.40[XT01B]
10251009 Automatic Spraygun V4000 Dmr 1.00 [797]
10251010 Automatic Spraygun V4000 Dmr 1.20 [797]
10251011 Automatic Spraygun V4000 Dmr 1.20 [20]
10251012 Automatic Spraygun V4000 Dmr 1.40 [20]
10251013 Automatic Spraygun V4000 Dmr 1.20 [600]
10251014 Automatic Spraygun V4000 Dmr 1.40 [600]
10251015 Automatic Spraygun V4000 Dmr 1.20 [3030]
10251016 Automatic Spraygun V4000 Dmr 1.40 [3030]
10251020 Automatic Spraygun V4000 Dmr 1.20 [765]
10251021 Automatic Spraygun V4000 Dmr 1.40 [765]
10251022 Automatic Spraygun V4000 Dmr 1.20 [500]
10251023 Automatic Spraygun V4000 Dmr 1.20 [600]
10251024 Automatic Spraygun V4000 Dmr 1.40 [600]
10251025 Automatic Spraygun V4000 Dmr 1.20[XT01B]
10251026 Automatic Spraygun V4000 Dmr 1.40 [78]
10251027 Automatic Spraygun V4000 Dmr 1.80 [67]
10251028 Automatic Spraygun V4000 Dmr 2.20 [64]
10251029 Automatic Spraygun V4000 Dmr 2.80 [62]
10251050 Automatic Spraygun V4000 Qcr 0.80 [765]
10251051 Automatic Spraygun V4000 Qcr 1.00 [765]
10251052 Automatic Spraygun V4000 Qcr 1.40 [765]
10251053 Automatic Spraygun V4000 Qcr 0.80 [500]
10251054 Automatic Spraygun V4000 Qcr 1.00 [500]
10251055 Automatic Spraygun V4000 Qcr 1.20 [500]
10251056 Automatic Spraygun V4000 Qcr 0.80[XT01B]
10251057 Automatic Spraygun V4000 Qcr 1.40[XT01B]
10251058 Automatic Spraygun V4000 Qcr 1.00 [797]
10251059 Automatic Spraygun V4000 Qcr 1.20 [797]
10251060 Automatic Spraygun V4000 Qcr 1.20 [20]
10251061 Automatic Spraygun V4000 Qcr 1.20 [20]
10251062 Automatic Spraygun V4000 Qcr 1.20 [600]
10251063 Automatic Spraygun V4000 Qcr 1.40 [600]
10251064 Automatic Spraygun V4000 Qcr 1.20 [3030]
10251065 Automatic Spraygun V4000 Qcr 1.40 [3030]
10251070 Automatic Spraygun V4000 Qcr 1.20 [765]
10251071 Automatic Spraygun V4000 Qcr 1.40 [765]
10251072 Automatic Spraygun V4000 Qcr 1.20 [500]
10251073 Automatic Spraygun V4000 Qcr 1.20 [600]
10251074 Automatic Spraygun V4000 Qcr 1.40 [600]
10251075 Automatic Spraygun V4000 Qcr 1.40[XT01B]
10251076 Automatic Spraygun V4000 Qcr 1.40 [78]
10251077 Automatic Spraygun V4000 Qcr 1.80 [67]
10251078 Automatic Spraygun V4000 Qcr 2.20 [64]
10251079 Automatic Spraygun V4000 Qcr 2.80 [62]
10250902 Automatic Spraygun V4000 Dmm 1.00 [765]
10250901 Automatic Spraygun V4000 Dmm 0.80 [765]
